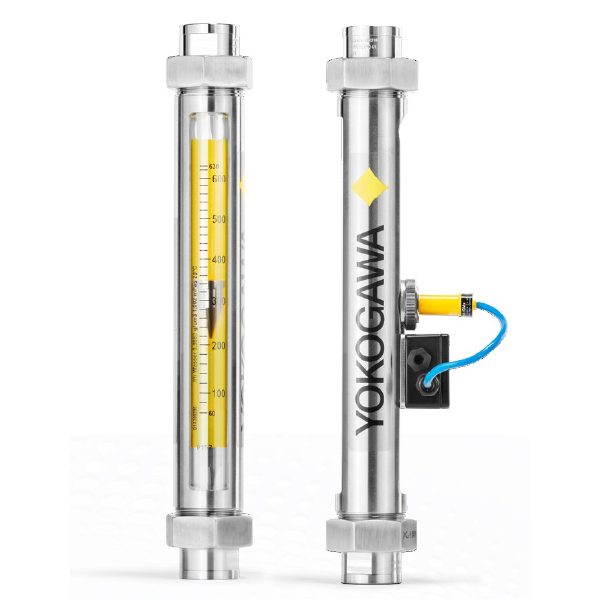

RAGN Rotameter
The RAGN Rotameter is designed for continuous flow measurement of liquids and gases. The measuring tube is made of borosilicate glass and has a clear, easy-to-read scale. RAGN is supplied as standard with 316 stainless steel in-line connections and is also available with stainless steel, titanium, PTFE or PVDF internal parts, depending on the application requirements. Connection options for the RAGN include NPT threads or flange connections.
The liquid passes through the measuring tube from the bottom to the top, which means that the rotameter must be mounted vertically. The actual flow is indicated by the top of the float and can be easily read directly from the scale on the measuring tube.
| Process connection | Material: Stainless steel |
|---|---|
| Measuring tubes | Length: 300 mm / 11.81 inches |
| Floatation material | For liquid: Stainless steel |
| Authorised operating conditions | Max. 16 bar / 232 PSIG |
| Measuring span | 10 : 1 |
| Measurement accuracy according to VDI/VDE 3513 sheet 2 (qG=50 %) | 1.6 % |
