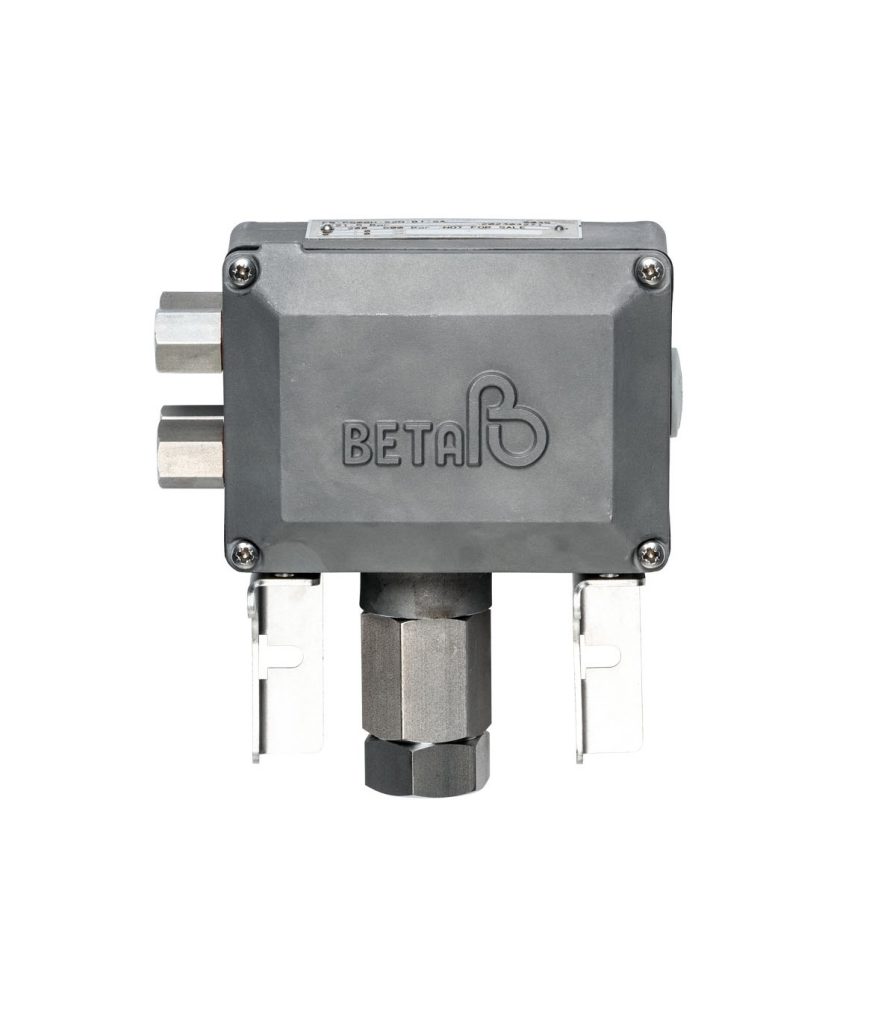

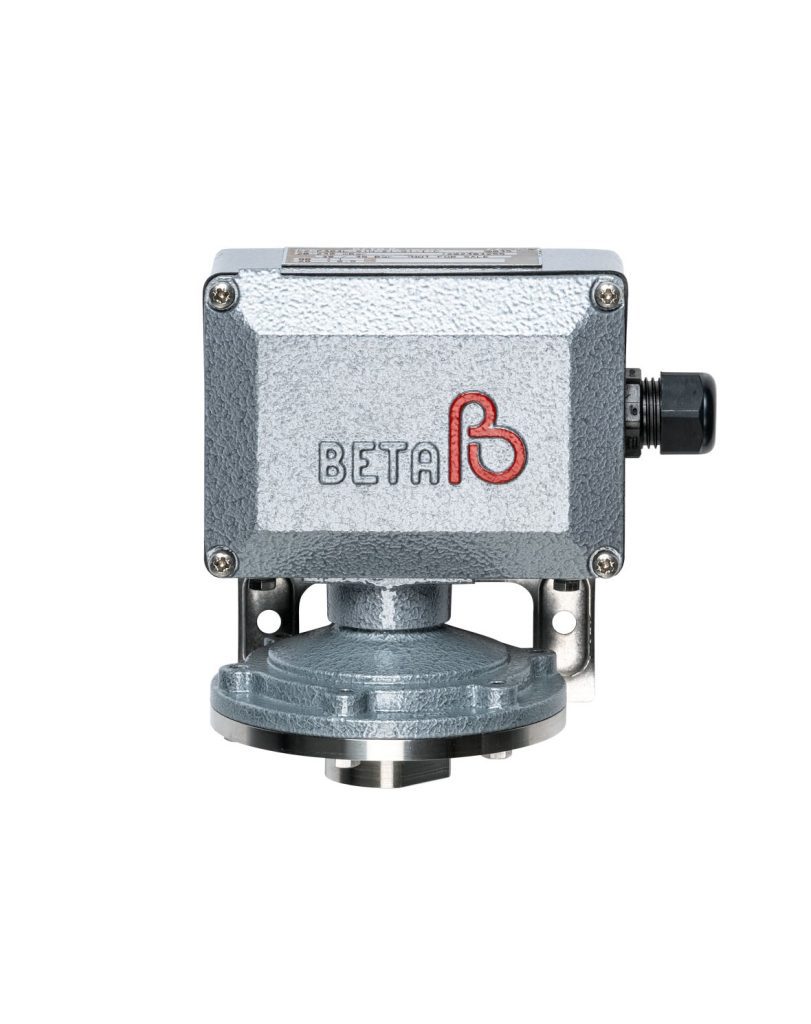

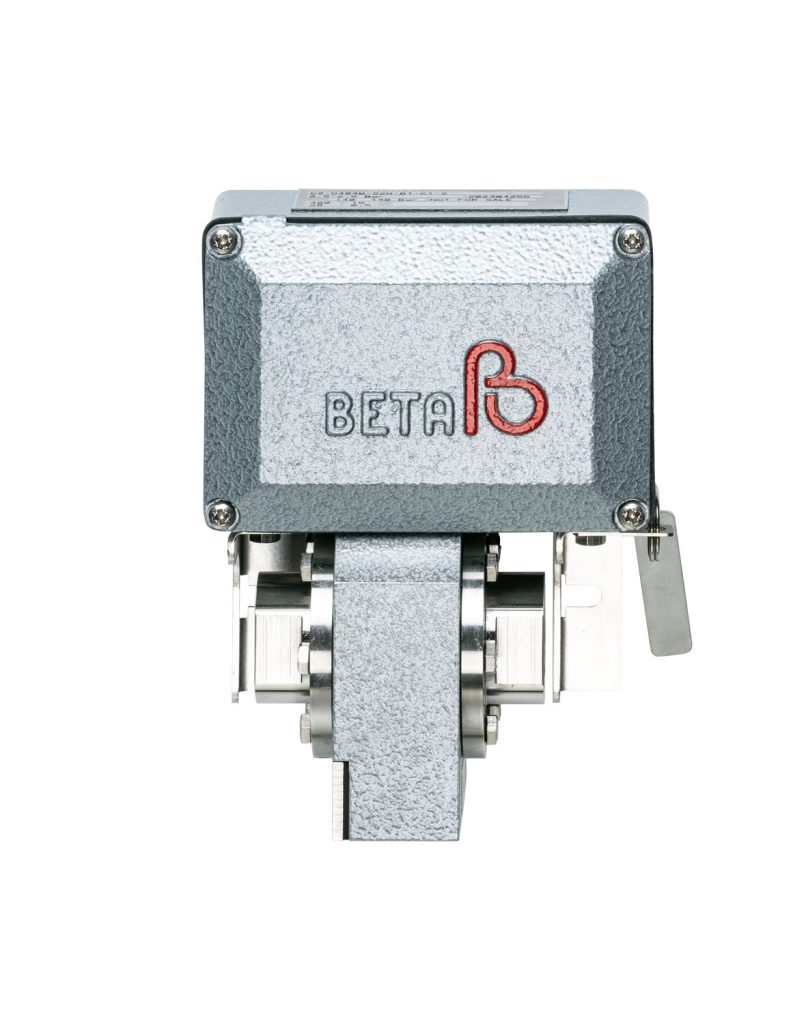

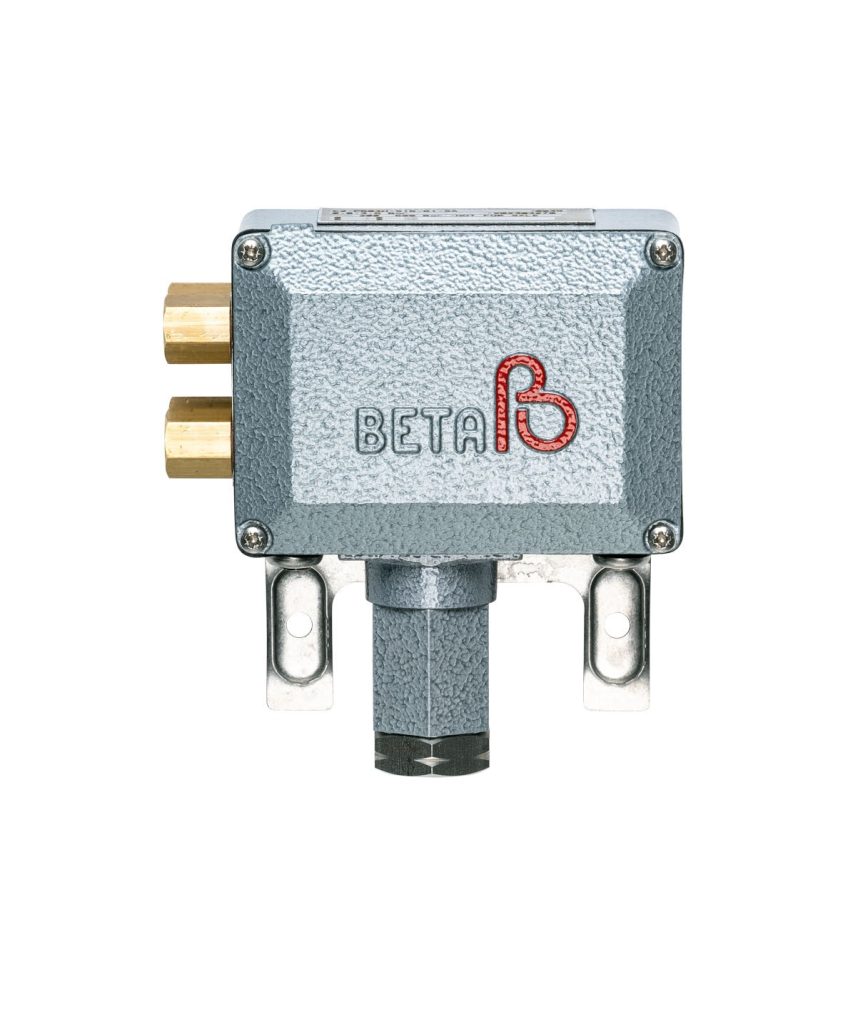

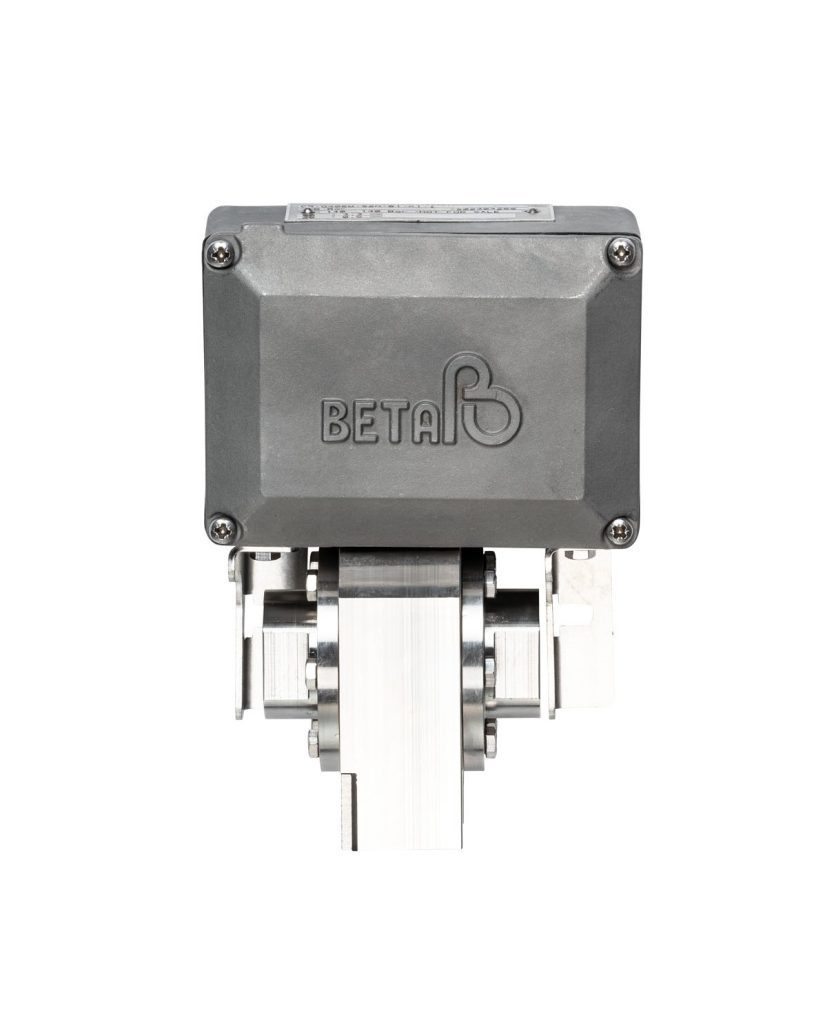

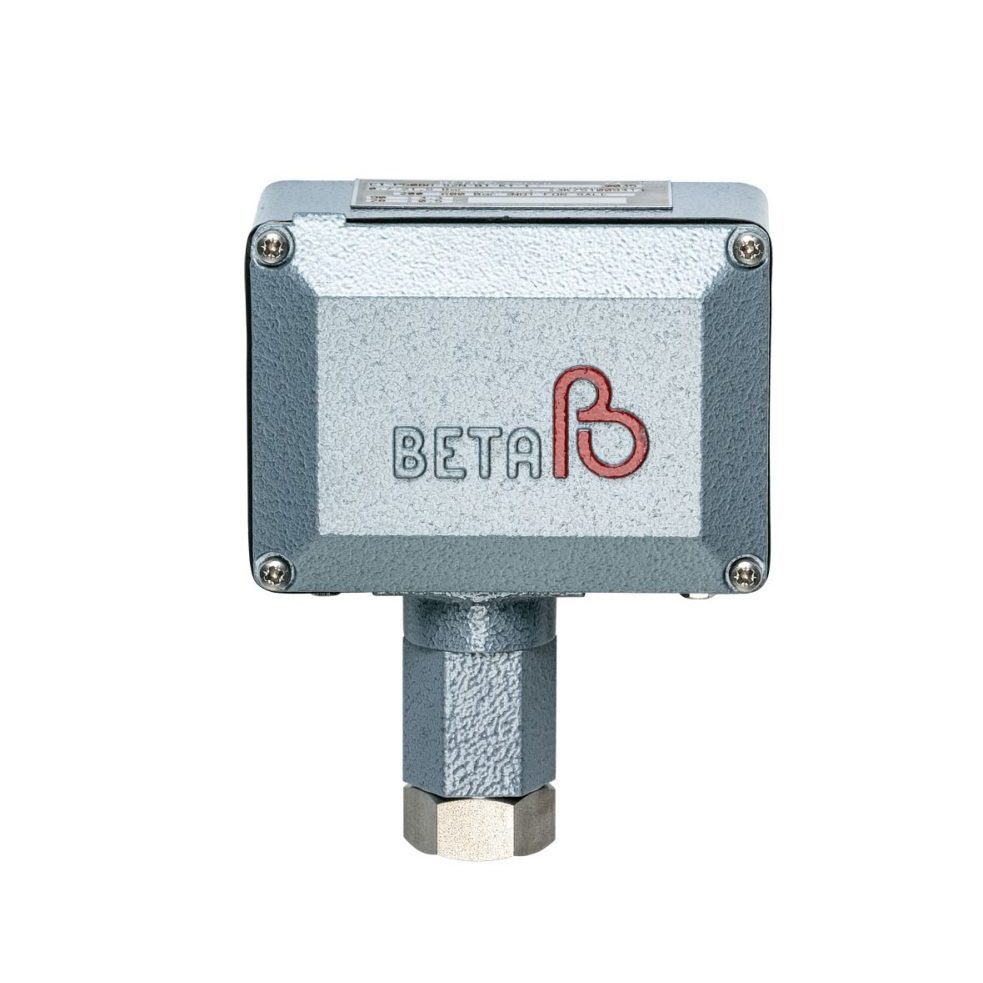

C-Series pressure switches

C-Series pressure switches

SPDT/DPDT pressure and temperature switches.

The SIL 3-certified C-Series is available in a wide range of pressure, temperature, vacuum and differential pressure ranges.

Experience flexibility with different process connections and materials in contact with the media, allowing easy integration into different systems.

The C-Series offers precision, durability and reliability for your critical applications.

(With option "I") for intrinsically safe applications.

Your guarantee of reliability and compliance for safe operation in hazardous environments.



Certified by KIWA according to standards NEN EN 60079-0 / EN 60079-11 for:

  • II 1 G Ex ia IIC-T4...T6 Ga or
  • II 2 G Ex ib IIC-T4...T6 Gb or
  • II 1 D Ex ia IIIC T85°C Da or
  • II 2 D Ex ib IIIC T85°C Db

ATEX: KIWA 15 ATEX 0023X &
IECEx: KIWA 15.0011X (-60 to +80°C) approved.

&
CSA: Cert.nr: 1891054 &
FM: Cert. No.: 3031247 (-40 to +80°C) approved.

Option "I"

In accordance with Art. 9 of the ATEX Directive 2014/34/EU (Ex ia/ib IIC), which includes requirements for insulation, flashover distance, creepage distances and enclosure type where a maximum peak voltage of 90 V or 3.3 A is allowed.

Please note the following:

When a switch is ordered with a cable gland (option "C"), BETA will automatically install a blue Ex cable gland. Due to low current in intrinsically safe systems, we recommend using switches with gold-plated contacts, marked with the codes (code "G1," "O1" or "Y1").

BETA - Allmän produktinformation

BETA - Allmän produktinformation: C-Serien Tryckvakter

Brand

BETA

BETA specialises in pressure and temperature switches that offer high precision and reliability. Their solutions are used to ensure safety and efficiency in process control systems.
