F010

F010

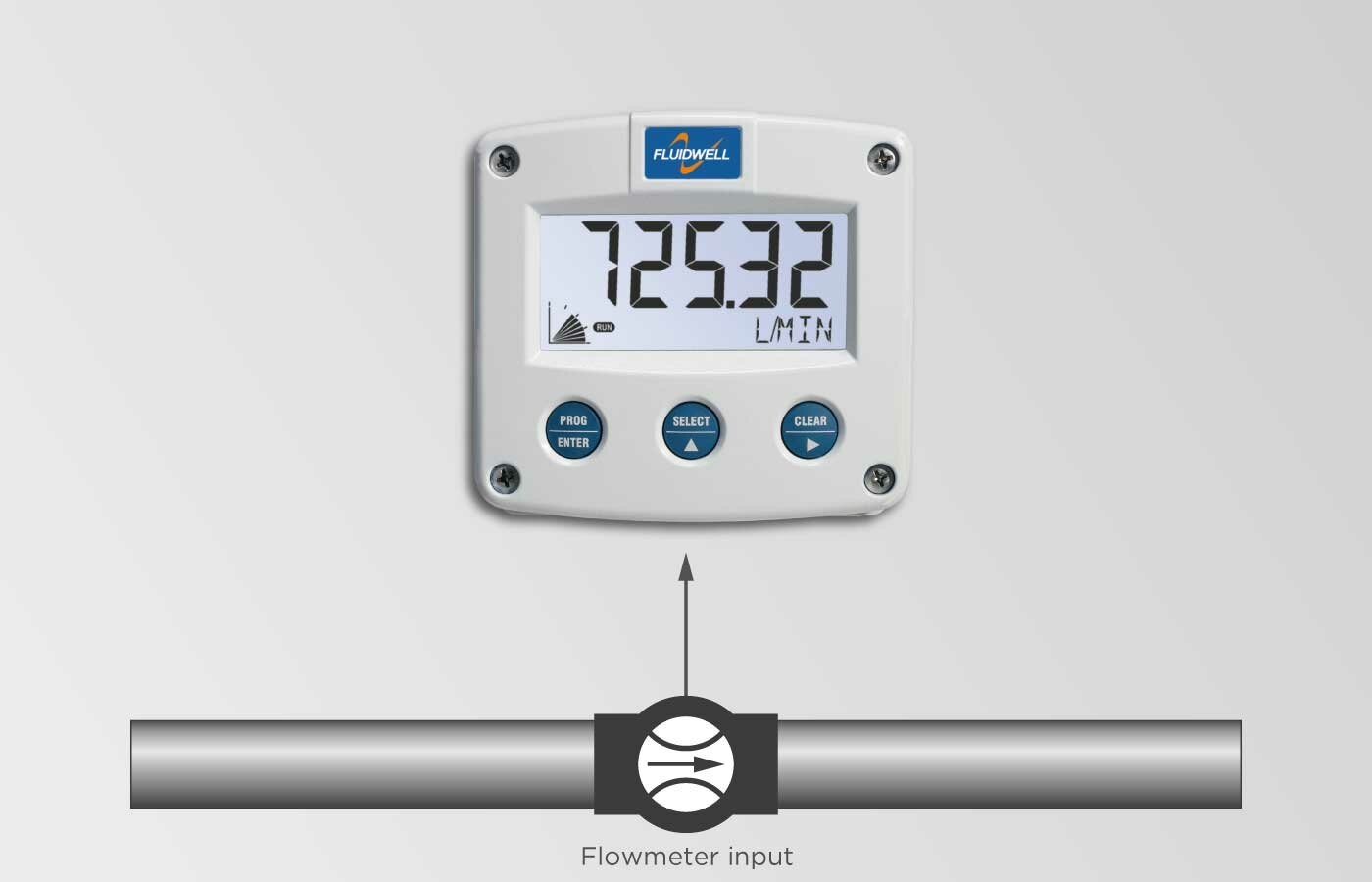

The F010 is a reliable flow indicator designed to provide clear and simple real-time flow information. With its robust construction and user-friendly design, it is ideal for industrial applications where simple and accurate monitoring of flow is needed

Fluidwell F010 is a user-friendly flow indicator that offers basic flow monitoring. It provides accurate real-time data and can be easily integrated into many systems. Its robust construction makes it resistant to harsh environments, making it ideal for applications in water treatment, the food industry and chemical processes.


Features and benefits

  • User-friendly design: Intuitive interface with clear display of flow values.
  • Flexibility: Compatible with a wide range of sensors, including pulse and analogue inputs.

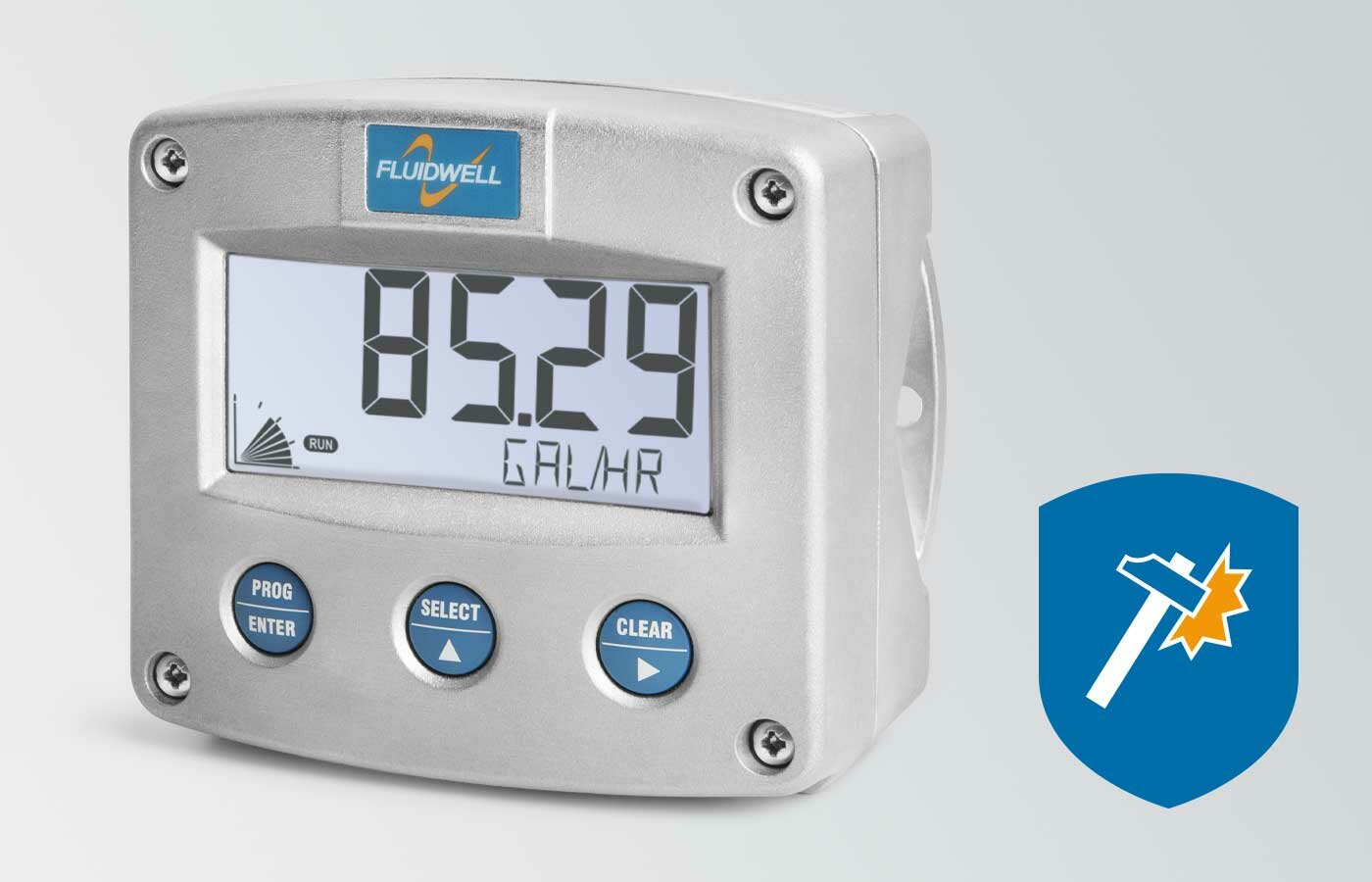

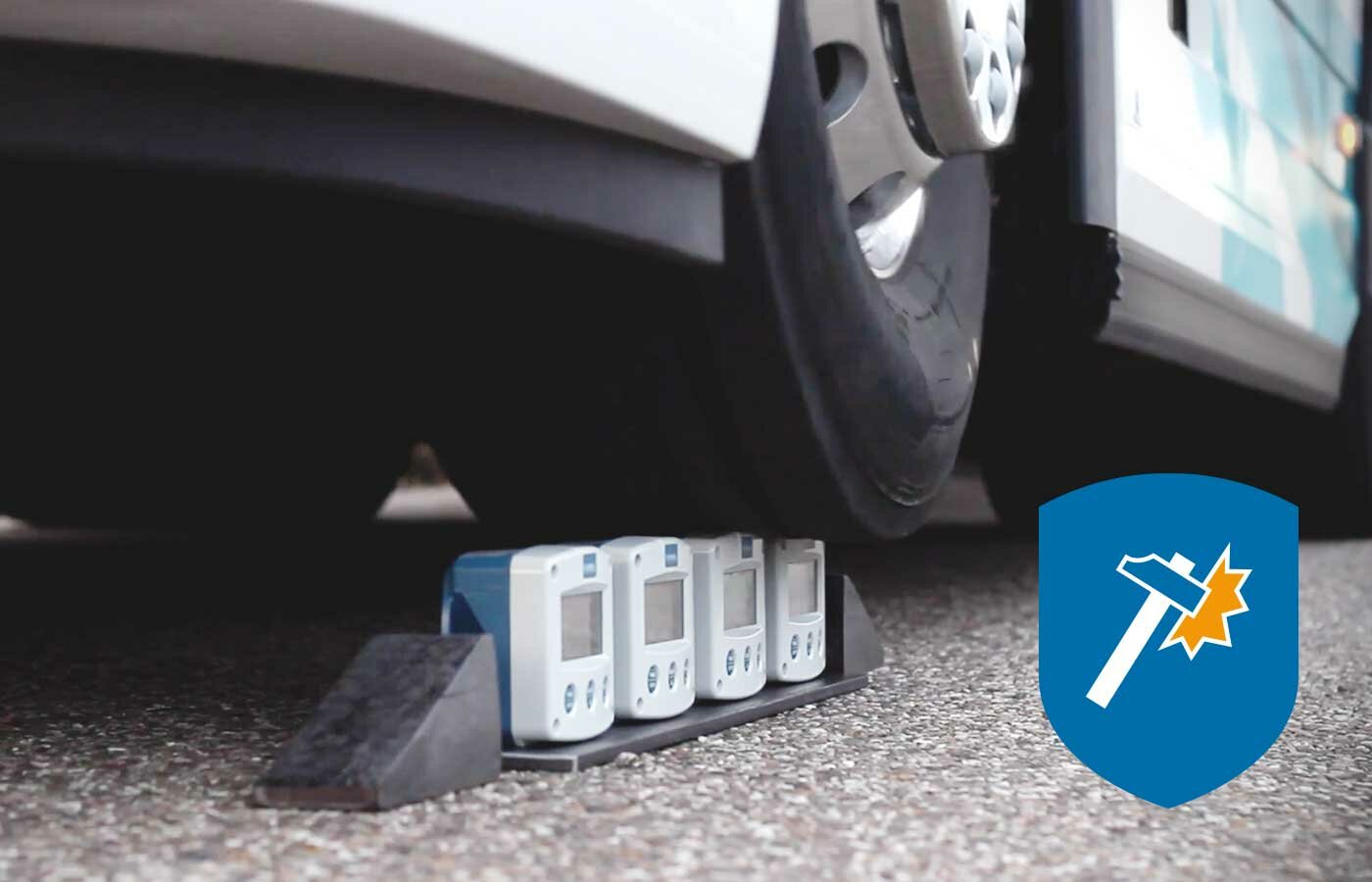

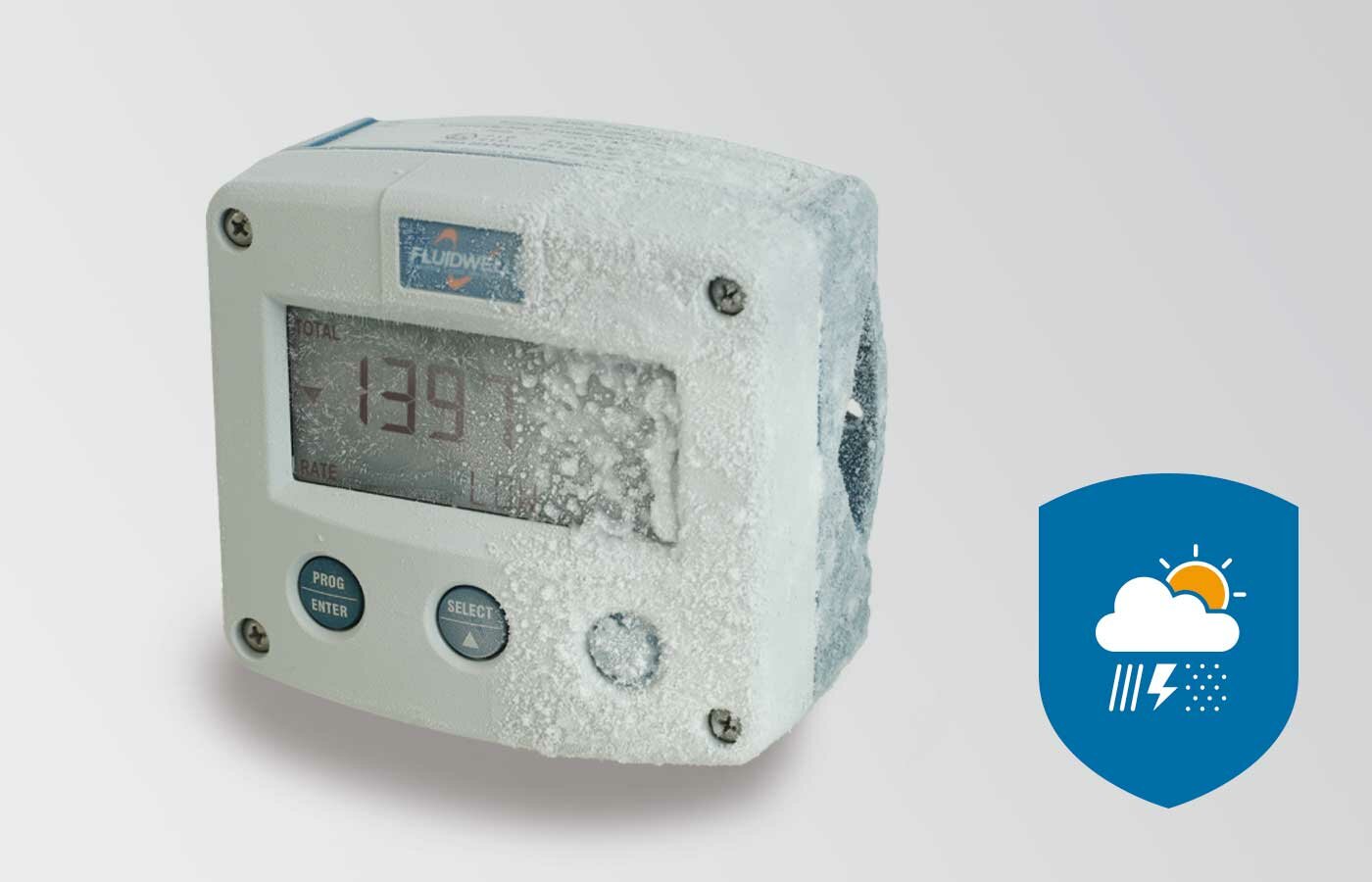

  • Robust construction: Withstands harsh industrial environments thanks to its weatherproof IP66/67 enclosure.
  • Precise monitoring: High precision to ensure accurate flow values in real time.
  • Long service life: Designed for durability and minimal maintenance.

Applications

  • Water and wastewater management.
  • Chemical processing.
  • Food and beverage production.
  • Industrial flow measurements.
  • Energy installations.
Property Specification
Signal Inputs Flowmeter Inputs: Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
(0)4 - 20mA.
0 - 10V DC.
Signal Outputs Pulse outputs: None.
Alarm outputs: None.
Analogue outputs: None.
Power Supply Long life Lithium battery.
4 - 20mA, input Loop-powered.
8 - 24V AC/DC.
115 - 230V AC.
Basic: 8 - 30V DC.
Sensor Supply 3.2, 8.2, 12, 24V DC.

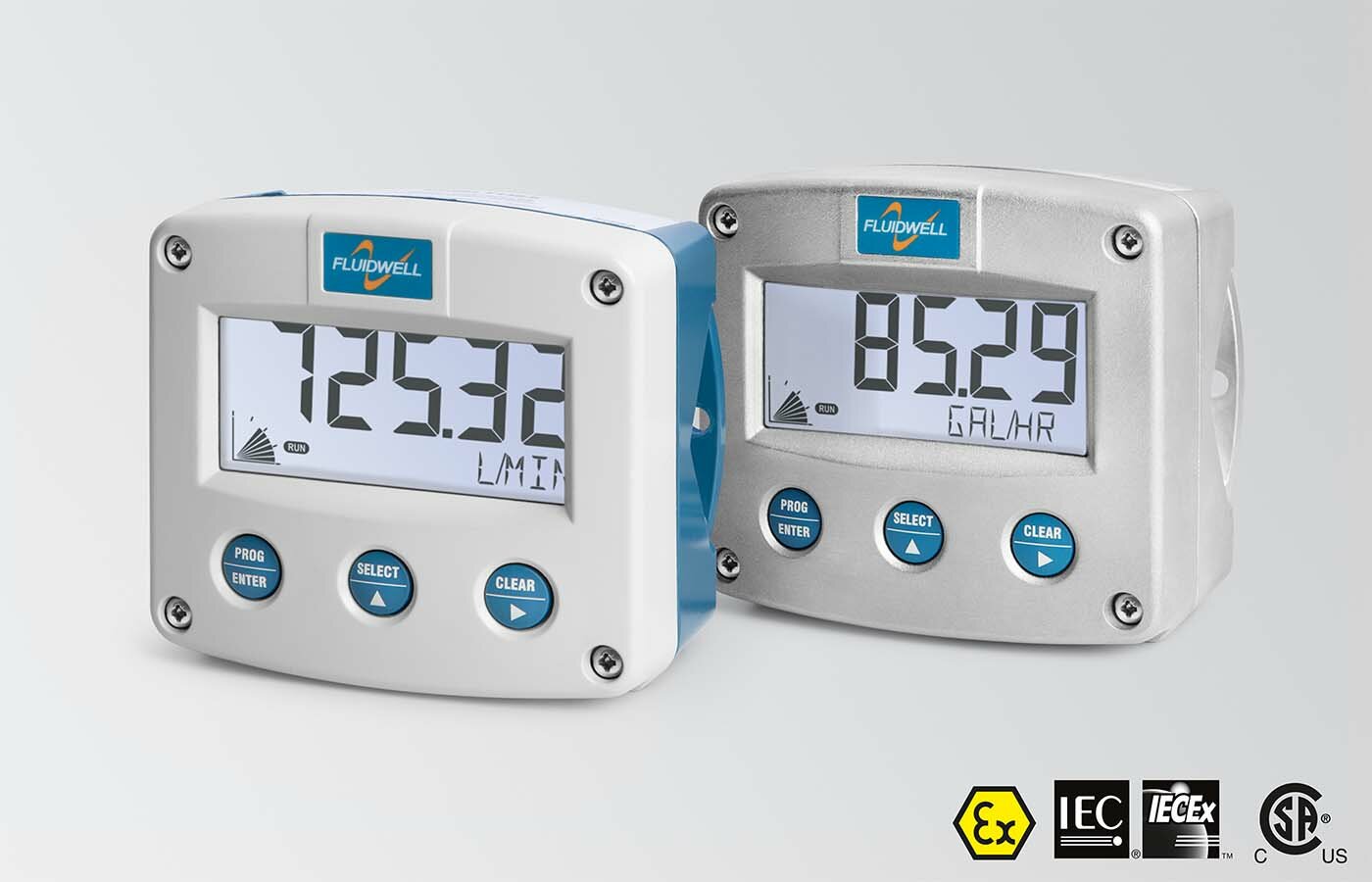

Hazardous Area Certification Intrinsically Safe:
ATEX: Gas: II 1 G Ex ia IIC T4 Ga
Dust: II 1 D Ex ia IIIC T200 100 °C Da
IECEx: Gas: Ex ia IIC T4 Ga
Dust: Ex ia IIIC T200 100 °C Da
CSA: I.S. Class I/II/III, Div 1, Grp A...G, T4
Class I, Zone 0, AEx ia IIC T4 Ga
Note: Extended aluminium enclosures not available with CSA/FM approval.

Explosion Proof:
ATEX/IECEx:
Gas: II 2 G Ex db IIB+H2 T5 Gb
Dust: II 2 D Ex tb IIIC T80°C Db

Communication Modbus communication available on F1-Series products.
HART communication is available with the F018 Flow rate Monitor / Totalizer.

Specification

Datasheet F010

Brand

Fluidwell

Fluidwell supplies robust and reliable displays and controls for flow measurement. Their user-friendly products are designed to improve the efficiency and accuracy of industrial processes.
