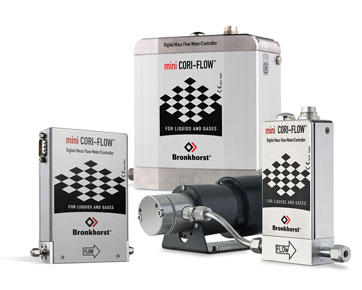

mini CORI-FLOW™ is a revolutionary range of Coriolis mass flow meters and controllers, specifically designed to measure and control low flows of both liquids and gases. The products offer high accuracy and fast response, even under varying operating conditions such as pressure, temperature and density.
With integrated PID control and closely coupled control valves or pumps, the series offers a cost-effective and space-saving solution. The robust construction and modular design make the mini CORI-FLOW™ ideal for applications in the chemical, pharmaceutical and energy industries.
Features and benefits:
- Advanced Coriolis technology: Independent of the fluid's density, temperature, viscosity and other properties.
- Integrated PID control: Enables fast and precise regulation.
- High accuracy: ±0.2 % for liquids and ±0.5 % for gases.
- Robust design: Withstands pressures up to 200 bar and varying temperatures.
- Flexible integration: Support for multiple communication protocols, including Modbus and EtherCAT.
- Space-saving: Compact design that fits into limited spaces.
Applications:
- Chemical industry: Precise dosing systems for reactive liquids.
- Pharmaceutical industry: Flow measurement and control in sterile processes.
- Food industry: Control of additives and ingredients.
- Research and development: Flow measurement for experiments and prototypes.
- Energy and environment: Monitoring of flows in renewable energy sources.
Model overview:
| model | Flow range (mass flow/volume flow) | Max. pressure (bar) | Function | Extra features |
|---|---|---|---|---|
| ML120V00 | 0...200 g/h | 200 | Measurement only | High accuracy, fast measurement |
| ML120V21 | 0...200 g/h | 5 | Measurement and control | High accuracy, fast regulation |
| M12 | 0...200 g/h | 200 | Measurement only | - |
| M13 | 0...2000 g/h | 200 | Measurement only | - |
| M14 | 0...30 kg/h | 200 | Measurement only | - |
| M15 | 0...300 kg/h | 100 | Measurement and control | - |
| M12V14I | 0...200 g/h | 100 | Measurement and control | - |
| M13V14I | 0...2000 g/h | 100 | Measurement and control | - |
| M14V14I | 0...7 kg/h | 100 | Measurement and control | - |
| MI130 | 0...2000 g/h | 200 | Measurement and control | IP66/IP67, Terminal strip connection |
| MI140 | 0...30 kg/h | 200 | Measurement and control | IP66/IP67, Terminal strip connection |
| Mxx | 0.05...5 ml/h to 3...300 l/h | 200 | Measurement and control (volume) | High accuracy, fast response, density and temperature output |
