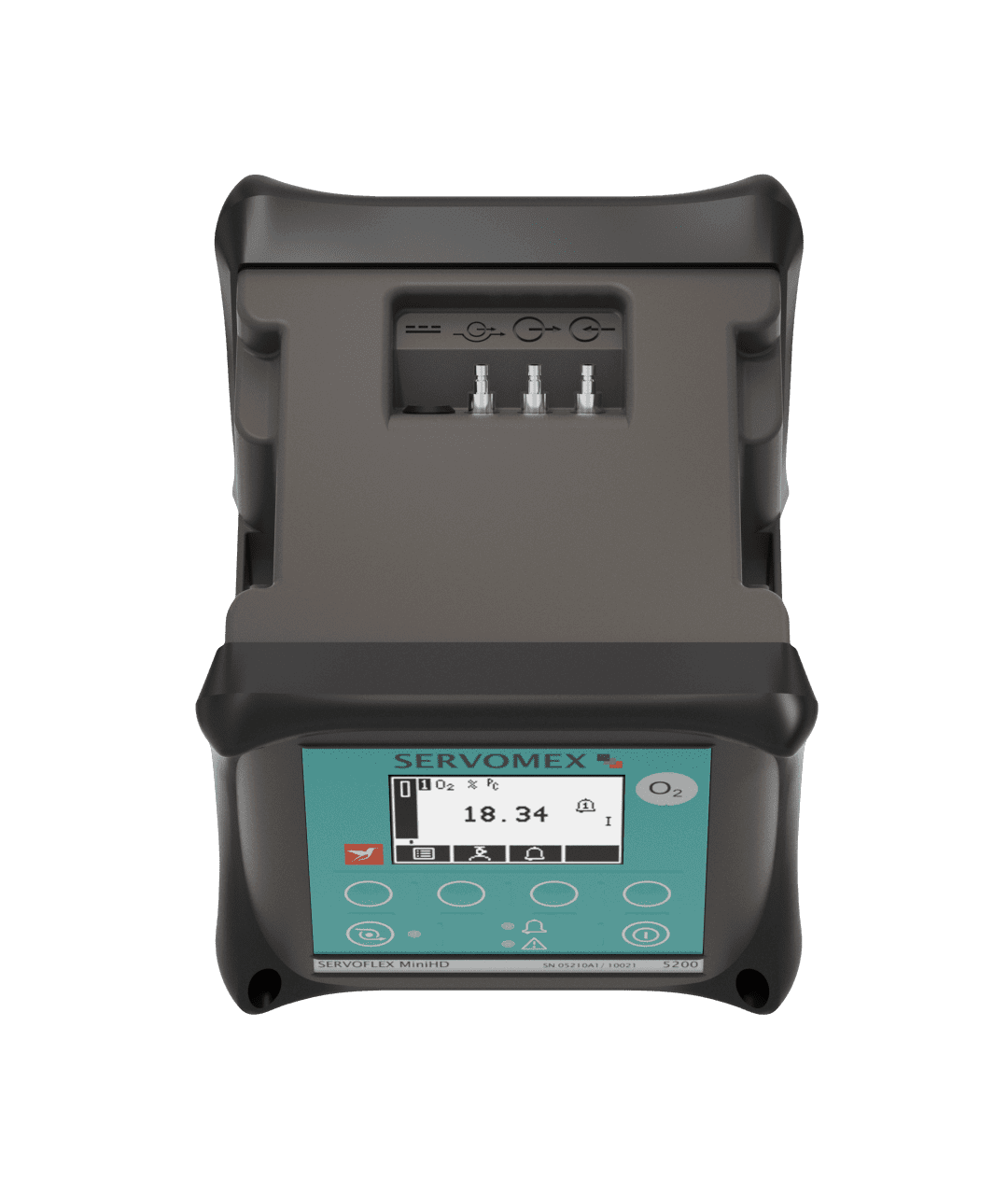

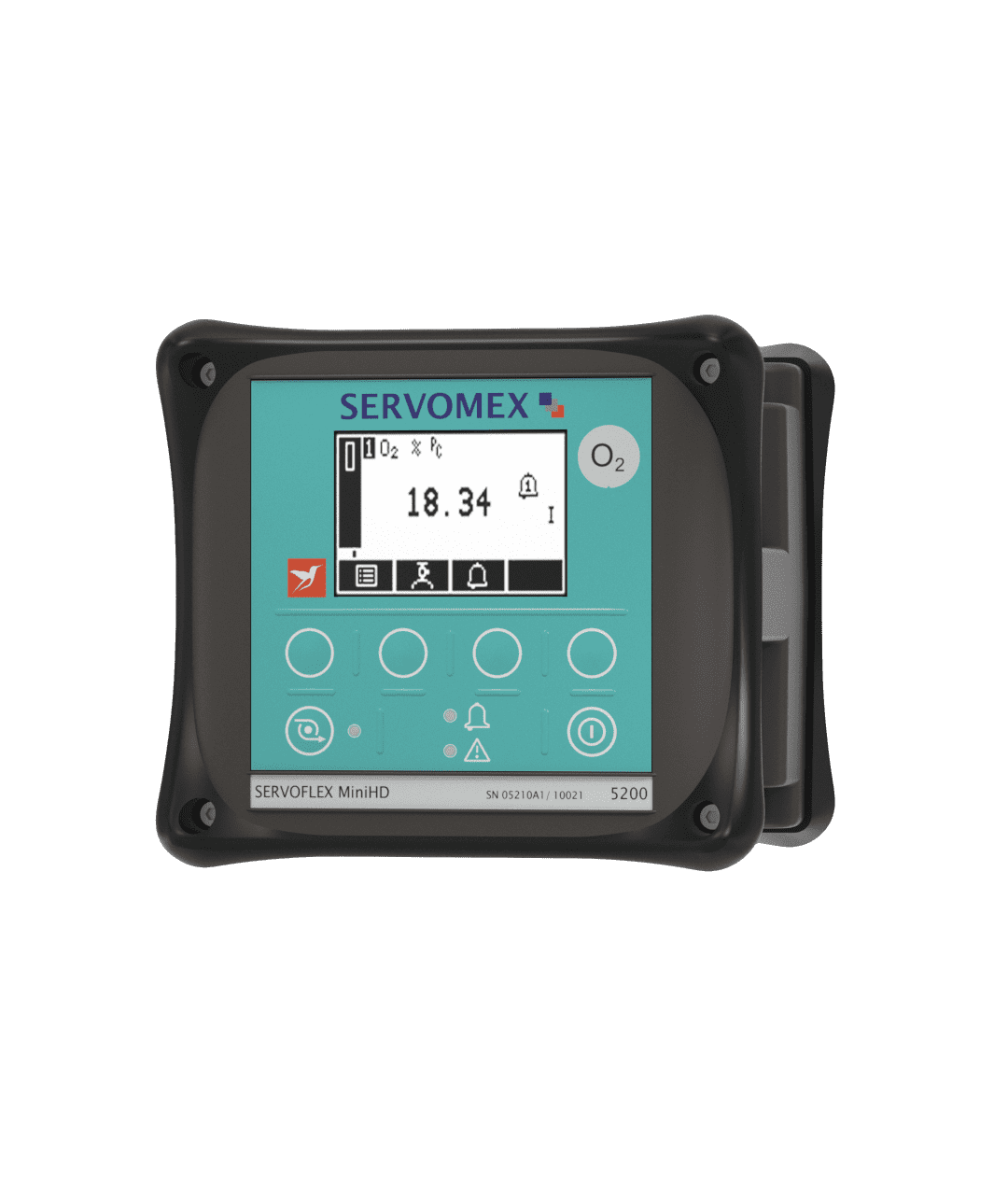

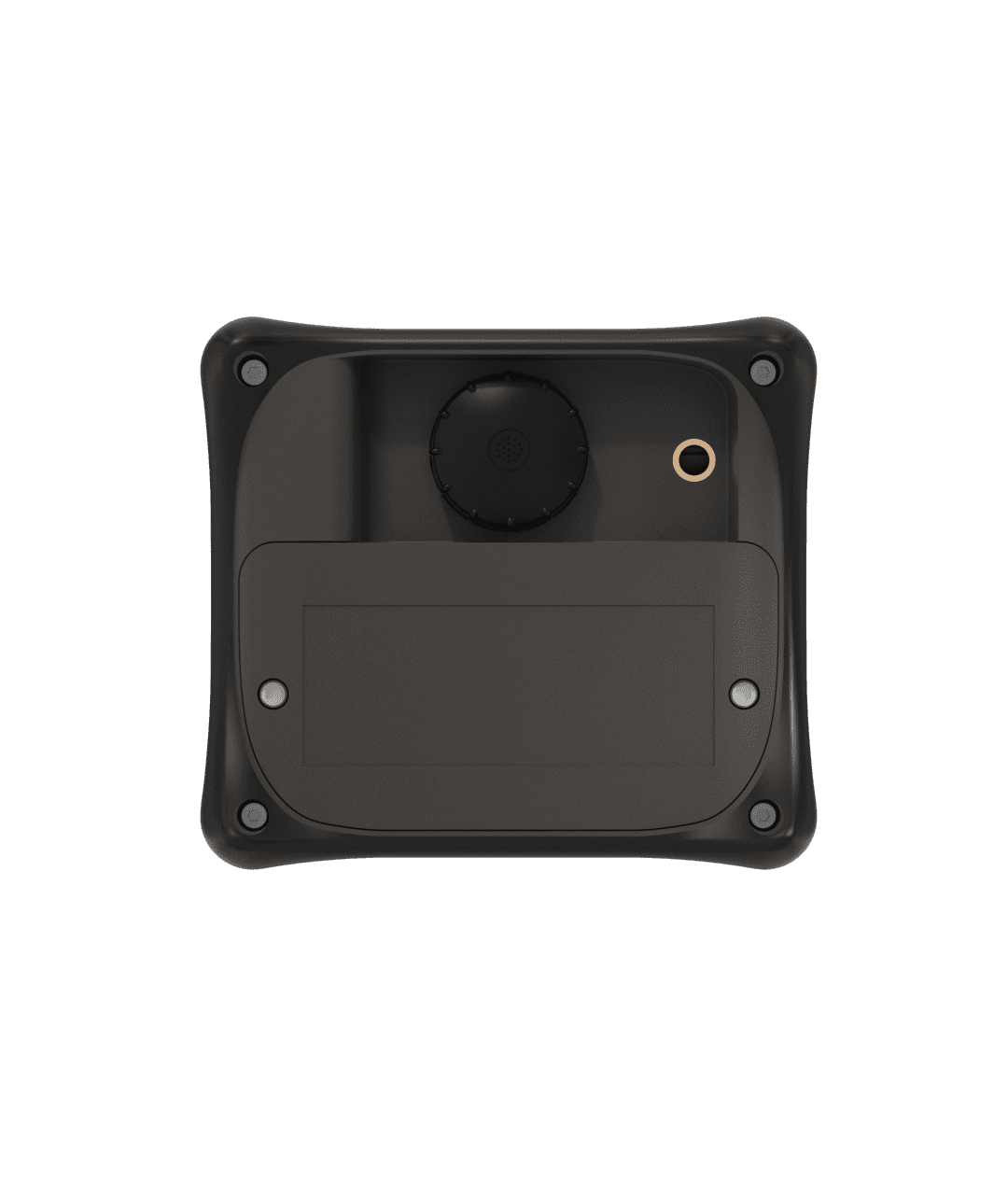

Servomex SERVOFLEX MiniHD 5200

Servomex SERVOFLEX MiniHD 5200

The Servomex SERVOFLEX MiniHD 5200 is a rugged and portable gas analyser designed to accurately measure oxygen (O₂), carbon monoxide (CO) and carbon dioxide (CO₂) in common gas mixtures. It is optimised for field use and light industrial applications.

The MiniHD 5200 combines advanced paramagnetic and infrared sensor technology to deliver accurate and reliable measurements of O₂, CO and CO₂. Its IP65-rated housing with protective overmoulding ensures durability in harsh environments. The analyser offers fast start-up, intuitive operation and long battery life, making it ideal for field work and light industrial applications. With non-consuming sensors, maintenance needs are minimised, resulting in lower operating costs.

Features and benefits

  • High accuracy: Uses paramagnetic and infrared technology for accurate measurements without background interference.
  • Robust designIP65 rated enclosure with protective overmoulding for durability in field environments.
  • User-friendly: Fast start-up and intuitive interface for easy use.
  • Long battery life: Long-lasting Li-Ion battery operation for maximum uptime.
  • Low operating costs: Non-consumable sensors reduce maintenance needs.

Applications

  • Physiological studies: Measurement of gas levels in biological and medical research environments.
  • Research and development: Use in laboratories for the analysis of gas mixtures.
  • Combustion optimisation: Monitoring of gas levels to optimise combustion processes.
  • Transformer maintenance: Checking gas levels during transformer maintenance.
  • Medical gas verification: Ensuring the purity and quality of medical gases.

brochure

Productbroschyr Servomex SERVOFLEX MiniHD 5200

Manual

Användarmanual Servomex Servomex SERVOFLEX MiniHD 5200

Measurement range (O₂):

0-100%

Measuring range (CO):

0-1%

Measurement range (CO₂):

0-20%

Accuracy:

±0.1% for O₂; ±0.02% for CO; ±0.2% for CO₂

Response time:

<20 seconds for 90% step response

Operating temperature:

5°C to 45°C

Power supply:

Mains and battery operation (up to 8 hours battery life)

Dimensions (mm):

160 mm (W) x 185 mm (H) x 140 mm (D)

Weight:

1.8 kg - 2.3 kg depending on configuration

Brand

Servomex

Servomex specialises in gas analysis and is known for its high-quality analytical instruments. With their accurate and reliable solutions, industry can monitor and optimise gas flows effectively, ensuring safety and performance.
