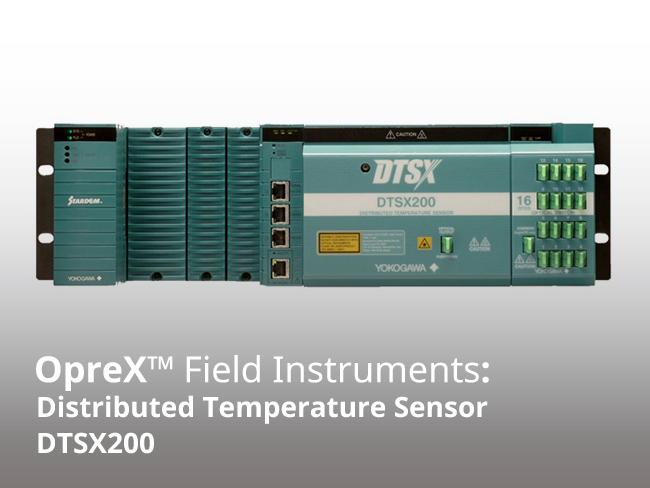

The DTSX200 from Yokogawa is a fibre optic distributed temperature meter that enables real-time monitoring of temperatures over long distances. It is particularly suited for applications in oil and gas extraction, LNG plants and refineries.

Yokogawas DTSX200 is an advanced distributed temperature measurement solution that uses fibre optic technology to measure temperatures along the entire length of the cable. This technology enables real-time monitoring of temperatures over long distances, making it ideal for applications that require continuous temperature monitoring and early detection of changes.

Measurement principle: The DTSX200 uses Raman scattering to measure temperatures. When a light pulse is sent through an optical fibre, the light is scattered by the molecules of the fibre cable and interacts with lattice vibrations. This interaction produces Stokes and anti-Stokes signals, the intensity ratio of which depends on the temperature at the specific point. By measuring these signals, the temperature can be determined along the entire fibre cable.

Advantages of the DTSX200:

  • Wide temperature range: Measures temperatures from -200°C to +800°C, making it suitable for a wide range of applications.
  • Modular design: Can be configured with up to 16 fibre optic channels, providing flexibility for different installation requirements.
  • Compatibility: Easily integrates with production control systems such as DCS and SCADA, facilitating monitoring and management.
  • Compact and energy efficient: Low power consumption allows installation in remote areas, even with solar energy.

Areas of use:

  • Oil and gas extraction: Monitoring temperature distribution in wells to optimise production and detect leaks.
  • LNG and refinery plants: Monitoring of processes and safety systems.
  • Pipeline monitoring: Detection of leaks and overheating.
  • Fire detection: Early identification of fire risks in tunnels and warehouses.

Features and benefits:

  • High precision: Measures temperatures with high resolution along the entire fibre cable.
  • Real-time monitoring: Provides immediate feedback to identify temperature variations and potential risks.
  • Flexible installation: Long measuring distance and possibilities for both single and double end measurement.
  • Energy efficient: Low power consumption makes it durable for long-term use.

DTSX 200

Item Specifications
Distributed
temperature
measurement
Distance Measurement distance range 1 km, 2 km, 3 km, 4 km, 6 km
Sampling resolution 10 cm, 20 cm, 50 cm, 1 m
Spatial resolution 1 m (10 to 90 %)
Temperature Measurement temperature range -200 to 300 °C (dependent on the optical fibre for sensing)
Temperature resolution
(1 σ, without optical switch)
Range
Time
10 s
1 min
10 min
1 kilometre
0.5
0.3
0.1
3 kilometres
1.1
0.6
0.2
6 kilometres
4.2 °C
2.1
0.7
Optical fibre sensor Optical fibre 50 / 125 μm GI
(No reflection at end of optical fibre)
Optical connector E2000 / APC
Interface Serial (RS-232C) 3 ports, non-isolated, RJ45 modular jacks
Full duplex, asynchronous
SERIAL 1:
Function: Communication (Modbus)
Baud rate: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4 57.6, 115.2 kbps
SERIAL 2:
Function: Communication (Modbus)
Baud rate: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4 kbps
SERIAL 3:
Function: Maintenance (Private)
Ethernet interface LAN 1 port, 10BASE-T or 100BASE-TX,
RJ45 modular jacks, automatic negotiation,
automatic MDI, with Network power switch (ON/OFF)
Display LEDs: HRDY, RDY, LASER ON
Power supply Consumption Operating mode 10 W
Power save mode 2.1 W
Dimensions (W x H x D) 197.8 x 132.0 x 162.2 mm (6 slots width)
Weight 2.5 kg

Temperature calibration of the Sensor Optical Fibre for DTSX200 is required before temperature distribution measurement.

Optical Switch Module

Item Specifications
Model DTOS2 DTOS4 DTOS16
Insertion loss 0.6 dB (Typical)
1.4 dB (Max.)
1.0 dB (Typical)
3.0 dB (Max.)
0.8 dB (Typical)
1.4 dB (Max.)
Distributed temperature measurements Measurement type Single end, Double end
Sensor optical fibres Optical fibre 50 / 125 μm GI, closed end, non refraction required
Optical connector E2000 / APC
Optical channels 2 channels 4 channels 16 channels
Interface Control Controlled by DTSX200
Display LEDs: HRDY, RDY, Alarm, Active channel
Power supply Consumption 1 W 1 W Operating 4.5 W
Power save 1 W
Dimensions (W x H x D) 65.8 x 130.0 x 160.3 mm
(2 slots width)
65.8 x 130.0 x 160.3 mm
(2 slots width)
65.8 x 130.0 x 160.3 mm
(2 slots width)
Weight 0.6 kg 0.64 kg 0.75 kg

Note: As a guideline, the module should be replaced periodically every 4.7, 6 and 9.5 years for continuous operation of 15-second, 20-second and 30-second measurements, respectively.

REGULATORY COMPLIANCE and CONFORMITY to STANDARDS

Item Specifications
Safety Standards CSA C22.2 No.61010-1-04
EN 61010-1:2010
EN 61010-2-030:2010
EN IEC 61010-2-201:2018
CU TR 004
EMC Standards CE Marking EN 55011:2016+A1:2017 Class A Group 1
EN 61000-6-2:2005
EN 61000-3-2:2014
EN 61000-3-3:2013
RCM EN 55011:2016+A1:2017 Class A Group 1
KC Marking Korea Electromagnetic Conformity Standard
EAC Marking CU TR 020
Laser safety Class IEC 60825-1:2007 Class 1M
IEC/EN 60825-1:2014 Class1
FDA (CDRH) 21CFR Part 1040.10
Standards for Hazardous Location Equipment FM Non-incendive Class I, Division 2, Groups A, B, C, D T4
FM 3600-2018
FM 3611-2018
FM 3810-2005
ATEX Type "n" II 3 G Ex nA ic [op is Gc] IIC T4 Gc X
EN IEC 60079-0:2018
EN 60079-11:2012
EN 60079-15:2010
EN 60079-28:2015
CSA Non-Incendive Class I, Division 2, Groups A, B, C, D T4
C22.2 No. 0-10
CAN/CSA-C22.2 No. 0.4-04
C22.2 No. 213-M1987
TN-078
Restriction of Hazardous Substances RoHS Directive EN IEC 63000:2018
