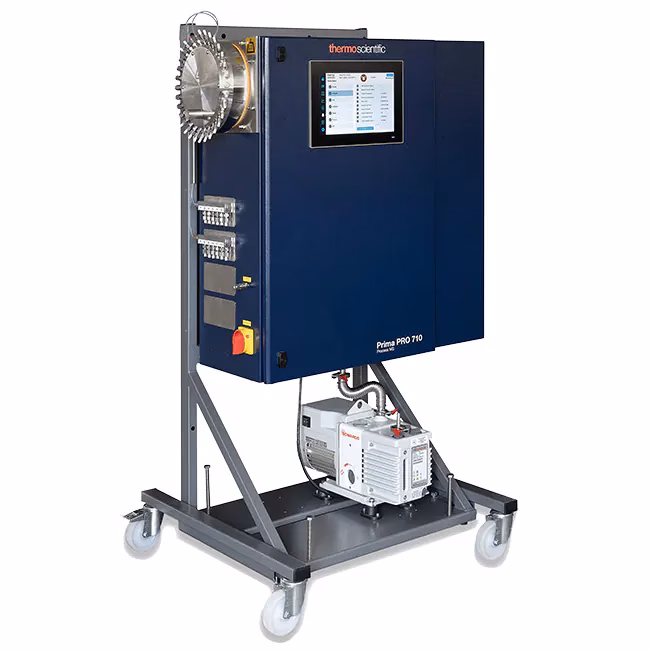

Prima PRO Process Mass Spectrometer

Prima PRO Process Mass Spectrometer

Categories , , , , , , , , Tags , , , , , , , , ,

The Thermo Scientific™ Prima PRO Process Mass Spectrometer enables fast, accurate, and multi-stream gas analysis, maximizing process efficiency while ensuring compliance with applicable requirements and regulations.

Request a quote
Contact us

The Thermo Scientific™ Prima PRO Process Mass Spectrometer is a highly reliable and versatile gas analyzer designed for fast, accurate, and multi-stream gas analysis. Utilizing advanced scanning magnetic sector technology, the instrument delivers high precision, extended calibration intervals, and excellent resistance to contamination, making it ideal for process monitoring in the chemical, petrochemical, biotechnology, semiconductor, and steel industries.

The integrated Rapid Multi-Stream Sampler (RMS) system enables analysis of up to 127 different process streams. With a single Prima PRO system, the need for multiple separate analyzers, such as gas chromatographs, can often be eliminated. This reduces maintenance requirements without compromising sampling frequency.

With its intuitive touchscreen interface, customizable user access levels, and multiple model options, the Prima PRO helps organizations improve efficiency, meet regulatory requirements, and optimize their processes.

Innovative features for maximum performance

  • Scanning magnetic sector technology: Provides superior accuracy, long-term stability, and high selectivity, making the instrument a reliable solution for real-time gas analysis.
  • Rapid Multi-Stream Sampling (RMS): Enables analysis of up to 127 different process gas streams. Multiple samples can be analyzed rapidly with minimal maintenance requirements.
  • Flexible analytical methods and rapid measurement: Programmable analytical methods combined with universal detector technology enable the instrument to be used across a wide range of industries, including petrochemicals, biotechnology, clean energy, and steel production.
  • Flexible process integration: As an option, the Variable Pressure Inlet is available, enabling direct sampling at pressures ranging from 1000 mbar down to 0.3 mbar, ensuring flexibility even in demanding process applications.
  • User-friendly touchscreen interface: The intuitive color touchscreen provides easy access to operational functions, simplifies maintenance, and enables real-time visualization of process data.
  • Advanced security and customization: Role-based user access permissions provide enhanced security and control, while system settings can be tailored to meet the specific requirements of the operation.
  • Multiple model options: Prima PRO is available in multiple configurations to meet the requirements of different industries, providing a scalable solution for a wide range of applications.

Prima PRO Process Mass Spectrometer is a proven, high-performance solution for industrial gas analysis, helping process industries improve efficiency, ensure regulatory compliance, and optimize their processes.

Applications

  • Fermentation processes: Monitoring gas evolution to optimise product yields.
  • Cell culture processes: Control of gas environments to ensure cell growth and productivity.
  • Iron and steel processes: Analysing process gases to improve efficiency and product quality.
  • Petrochemical plants: Monitoring of gas flows in ethylene, ammonia and hydrogen plants.
  • Catalysis research: Studies of gas reactions to develop and optimise catalysts.

Specification

Datasheet for the Prima PRO Process Mass Spectrometer 700.

Specification

Datasheet for the Prima PRO Process Mass Spectrometer 710.

Application note

Application note: Improving production of Syngas with fast, precise gas analysis MS

Ion source:

Encapsulated Electron Impact (EI) ion source with dual filaments, temperature-controlled (adjustable from 120–200 °C with an accuracy of ±0.1 °C).
Analyst type:

Scanning laminated electromagnet, 6 cm radius, 80° deflection
Mass area:

1 to 200 amu
Resolution:

Switchable between two collector slits. Standard configuration: resolution 60 (1 mm) and 20 (4 mm). Optional configurations: 140/85 (0.36/0.69 mm), 100/45 (0.56/1.45 mm), or 140/45 (0.36/1.45 mm).
Mass scale stability:

Measured at mass 28: < 0.013 amu over 24 hours.
Peak Shape:

At a resolution of 60, the ratio between the flat-top width (99% peak height) and the base width (5% peak height) is 0.5.
Abundance sensitivity:

< 250 ppm for 27/28 amu.
Detector:

Faraday detector or dual Faraday/SEM detector (optional).
Inlet:

Temperaturreglerad mikrokapillär med molekylär läcka och bypass (standard). Variable Pressure Inlet finns som tillval.
Vacuum system:

Turbomolecular pump and external rotary vane pump.
Sample flow:

Digitally measured and logged for each ion current on instruments equipped with the RMS option.
Analysis time:

0,3–1,0 s per gaskomponent.
Ambient temperature:

12 till 40 °C.
Lägsta detektionsnivå, dubbel SEM:

Typiskt 5 ppb (kan variera beroende på gasmatris).
Lägsta detektionsnivå, enkel SEM:

Typiskt 0,1 ppm (kan variera beroende på gasmatris).
Lägsta detektionsnivå, Faraday:

Typiskt 10 ppm (kan variera beroende på gasmatris).
Precision:

Bättre än 0,1 % relativt över 24 timmar.
Linearity:

< 1% relative over one decade of concentration change (typical, application-dependent).
Dynamic measurement range:

1 ppm–100 % (teoretiskt, applikationsberoende).
Stability:

Bättre än 10 % relativt över en vecka.
Power supply:

115/230 VAC, effektförbrukning cirka 2000 VA (GP-modell) eller 2500 VA (Ex-modell).
Områdesklassning:

General Purpose; ATEX/IECEx/UKEx pxb (Zone 1): II 2 G Ex pxb IIC T3 Gb eller II 2 G Ex op pr pxb IIC T3 Gb. Ex Div 2 (Z-Purge).
Dimensions and weight:

65 cm (L) × 150 cm (H) × 70 cm (B), cirka 300 kg beroende på konfiguration.
Communication:

Modbus (RTU eller ASCII, master/slav), Modbus Ethernet TCP/IP, Profibus DP och OPC UA.
User interface:

Grafiskt användargränssnitt med färgpekskärm för åtkomst till analysatorns funktioner (gäller endast 710-modellen).
Lokal manövrering:

Frontpanelsåtkomst för kalibrering, analys och datavisning (gäller endast 710-modellen).
