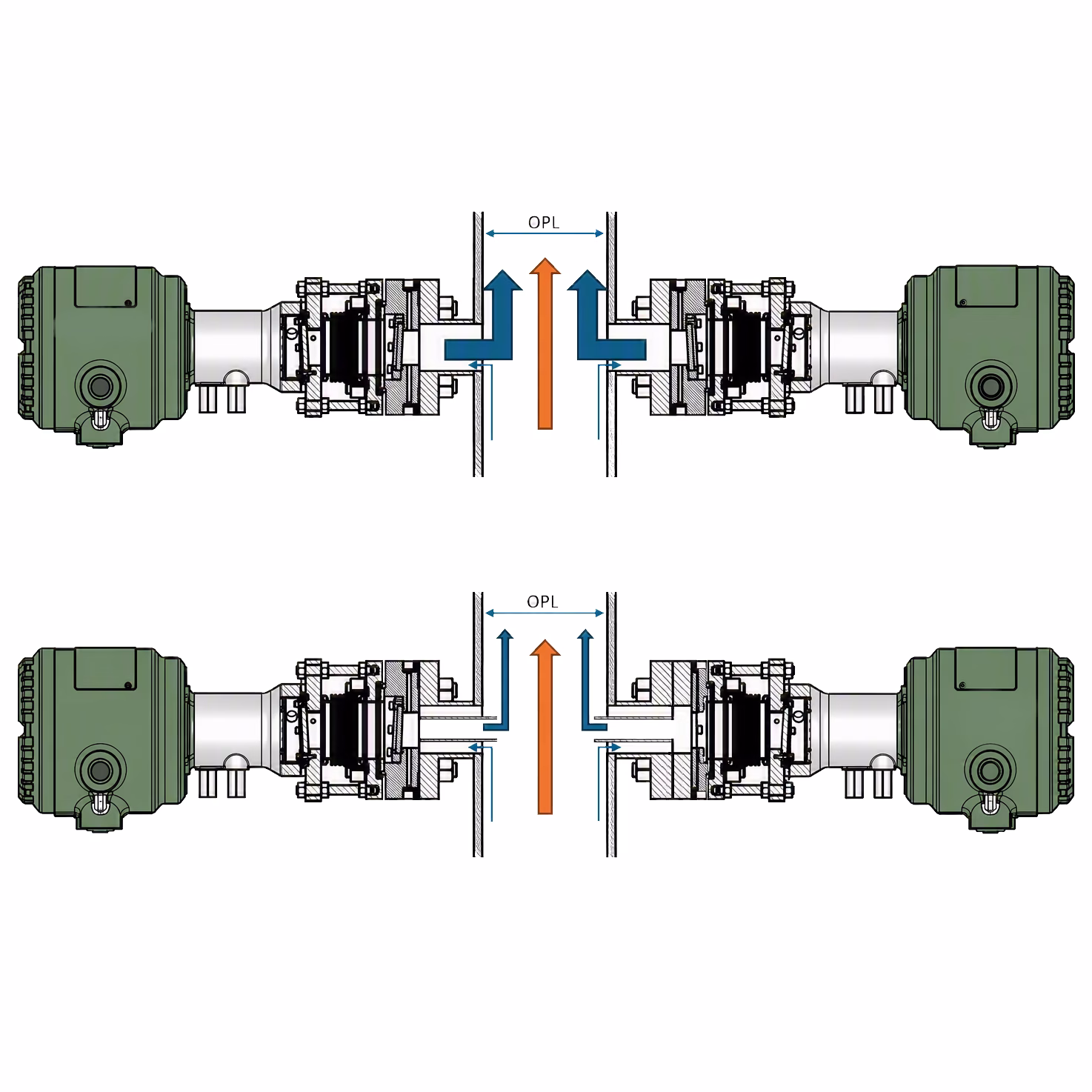

Insertion tubes are used as an option in several gas analysis applications to protect laser optics from dirt, dust, tar, and condensation.
By extending the measurement point into the process, the insertion tube can help reduce purge gas consumption, provide more stable and accurate measurements, and minimize the risk of water or tar affecting the laser optics.
- Protects laser optics from dirt, dust, tar, and condensation.
- Improves measurement quality and can reduce the need for purge gas.
- Customizable length and diameter, available in lengths up to 1500 mm.
Length and diameter are customized to suit the application, with a maximum length of up to 1500 mm. Can be supplied together with purge panel and, in some cases, an isolation flange.
